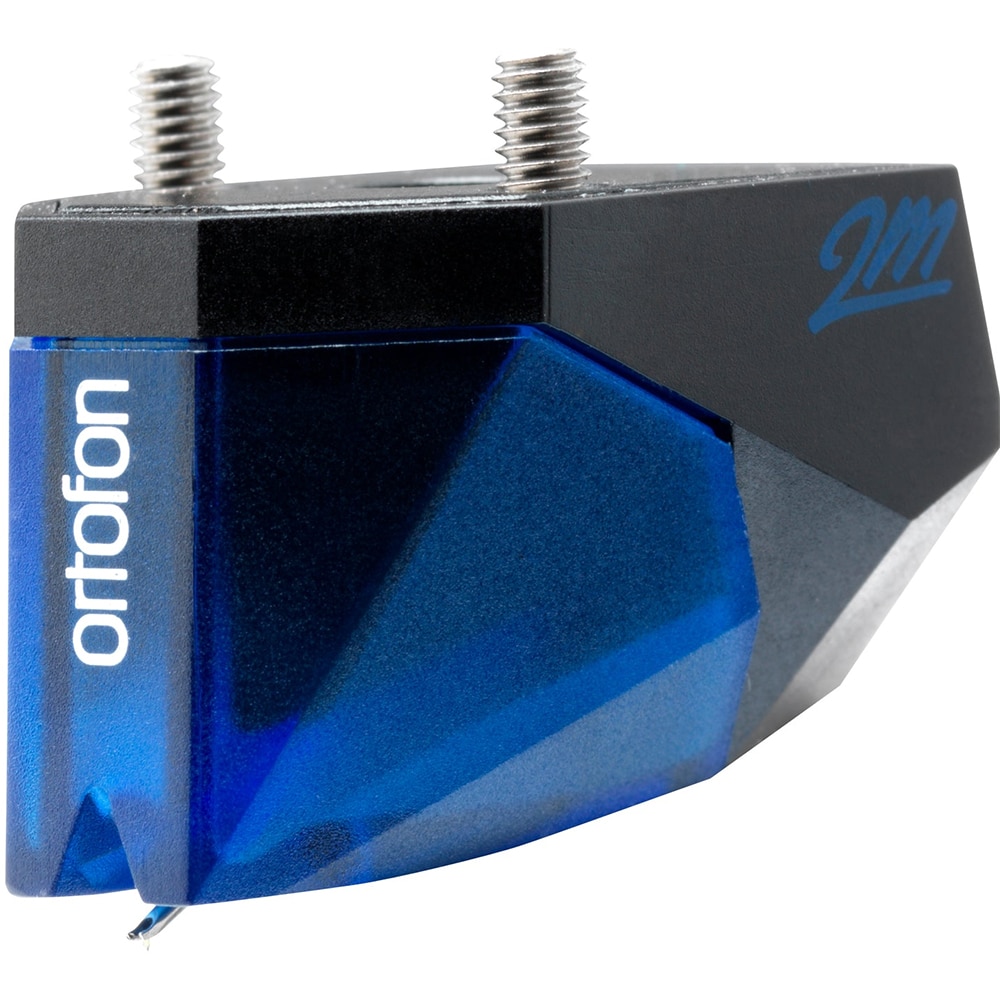

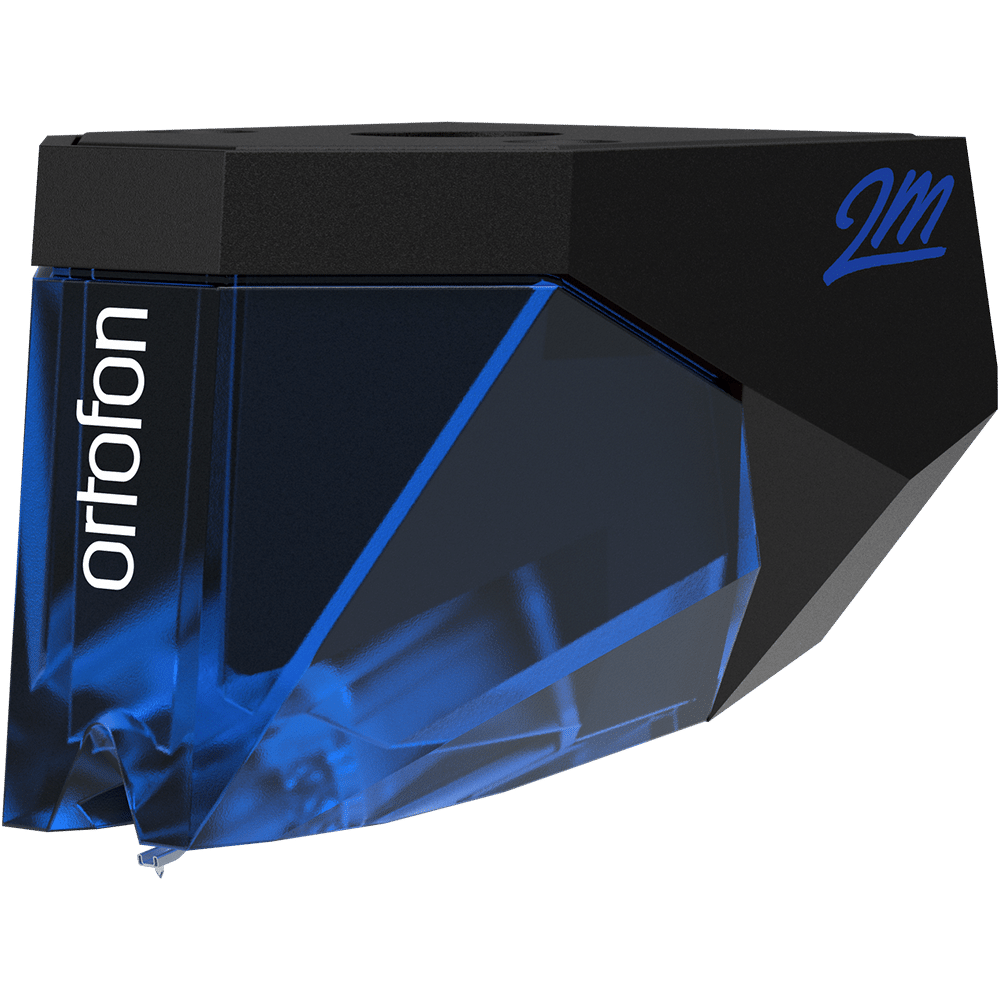

Ortofon 2M Blue Äänirasia

Technical Data:

Output Voltage (at 1kHz, 5cm/sec): 5.5mV
Channel Balance at 1kHz: 1.5dB
Channel Separation at 1kHz: 25dB
Channel Separation at 15kHz: 15dB
Frequency Range (at -3dB): 20 Hz – 25 kHz
Frequency Response 20Hz – 20kHz: 2 / -1dB
Tracking Ability at 315Hz: Typically 80μm
Compliance, Dynamic, Lateral: 20μm / mN
Stylus Type: Nude Elliptical
Stylus Tip Radius r / R: 8 / 18μm
Tracking Force Range: 1.6 – 2.0g (16 – 20mN)
Recommended Tracking Force: 1.8g (18mN)
Tracking Angle: 20º
Internal Impedance / DC Resistance: 1.3kΩ
Internal Inductance: 700mH
Recommended Load Resistance: 47kΩ
Recommended Load Capacitance: 150 – 300pF
Cartridge Colour Body / Stylus: Black / Blue
Cartridge Weight: 7.2g
Replacement Stylus Unit: Stylus 2M Blue
Accessories:  Stylus brush
Screwdriver
Screws

Takuu 24kk
